HX-AMF-01
12A 3CH RGB Amplifier
AMF is constant voltage product,it can work with all kinds of the constant voltage controller.
Adding one RGB amplifier, it can control more 144w(12V*12A),con connect numerous in theory.
Supply voltage is DC5V, 12-24V optional.
Output to RGB three channels,each channel max current of 4A.
2-year warranty.
AMF is constant voltage product,it can work with all kinds of the constant voltage controller.
Adding one RGB amplifier, it can control more 144w(12V*12A),con connect numerous in theory.
Supply voltage is DC5V, 12-24V optional.
Output to RGB three channels,each channel max current of 4A.
2-year warranty.
RGB Amplifier
RGB Amplifier is used for all our company RGB LED controller. It can accept PWM signal. When adding one RGB amplifier, it can connect to more than double of the number led lights. In theory , RGB amplifier can be connected to numerous.
Technical Parameters
| Working temperature | -20-60℃ |
| Supply voltage | DC12-24V |
| 0utput | 3 channels |
| Connecting mode | common anode |
| External dimension | L105*W65*H23 mm |
| Packing size | L117*W71*H36 mm |
| Net weight | 110g |
| Gross weight | 140g |
| Static power consumption | <1W |
| Output current | <4A(each channel) |
| Output power | 12V:<144W, 24V:<288W |

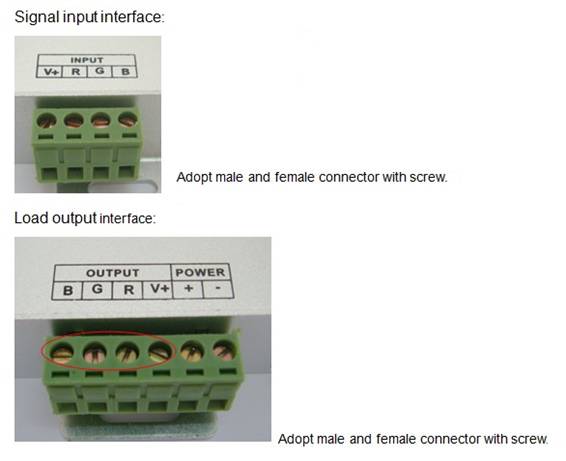

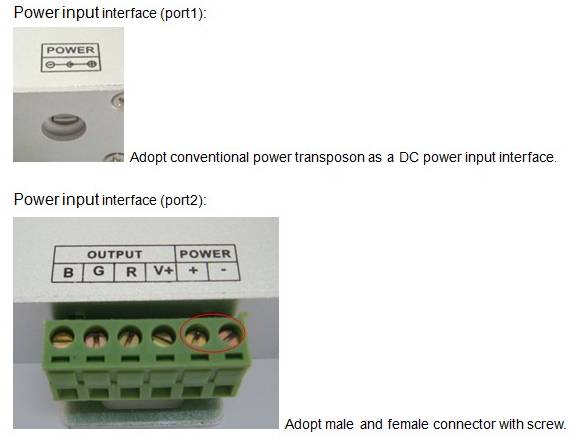

Interface Specifications
Direction for use
In accordance with Screen Printing on the RGB amplifier panel, connect the input and output signal lines correctly as order. Then connect the power amplifier to the RGB amplifier. Specifically for the use with the LED control, please refer to the following <Typical Applications>.
Typical Applications

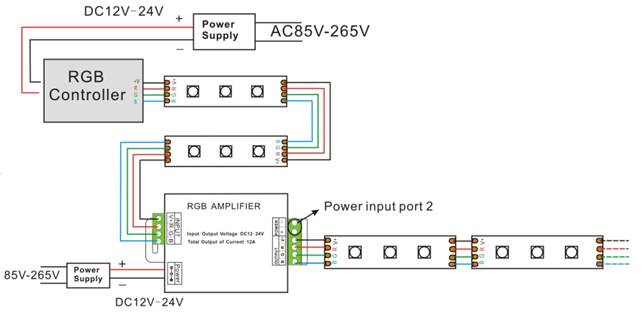

Application Circuit1- Serial connection:

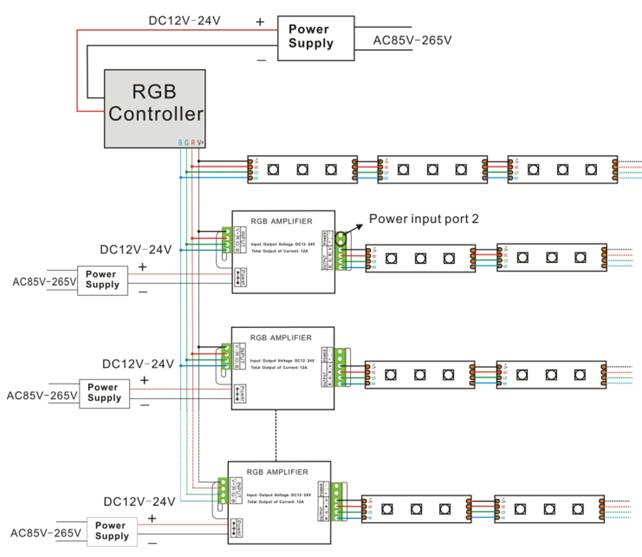

Application Circuit2- Parallel connection:
